OEM 4-20mA Smart Pressure Sensor Pressure Transducer Pressure Transmitter

Name: OEM 420mA Smart Pressure Sensor Pressure Transducer Pressure Transmitter
Brand: CSPPM
Price: 1 USD

China OEM 4-20mA Smart Pressure Sensor Pressure Transducer Pressure Transmitter wholesale

Brand Name : CSPPM

Model Number : PPM-T222H

Place of Origin : China

MOQ : 1

Supply Ability : 1000pcs Per Month

Delivery Time : 10-15 work days

Packaging Details : Standard export packing, including instructions and certificate

Measured medium : gas, liquid and steam (non-corrosive fluid to 316L stainless steel)

Pressure type : sealed reference pressure, ventilator pressure

Pressure Range : 0 ～ 10bar, 16bar, 25bar, 40bar, 60bar, 160bar, 250bar, 400bar, 600bar, 700bar, 1000bar

Power supply : 9-32VDC

Built-in amplifier output : 4 ～ 20mA, 0 ～ 10VDC, 0 ～ 5VDC, 1 ～ 5VDC, 0.5 ～ 4.5 VDC

Non-linearity : ≤0.25% FS (10bar, 16bar, 25bar) ≤0.05% FS (≥40bar)

Repeatability : 0.1% FS Comprehensive accuracy: 0.5% FS

Accuracy : 0.5% FS

Long-term stability : 0.15% FS / year

Contact Now

Smart OEM 4-20mA Pressure Sensor/Pressure Transducer/Pressure Transmitter

Product Introduction:

PPM-T222H series pressure transmitter adopts classic strain technology, integrated structure design, withstands frequent pressure shock, vibration, high overload, has a high level of anti-cavitation and liquid hammer capabilities, suitable for various severe heavy industrial environments .

Applications :

Electro-hydraulic servo systems and equipment, hydraulic stations, hydraulic machines, experimental machines, various types of heavy machinery, engineering machinery, agricultural machinery, wind power hydraulic and pneumatic control, engines, internal combustion engines, diesel engines, heat generating units, steam turbines, hydraulic turbines, locomotive braking systems, Hydraulic and pneumatic control equipment, industrial process detection and control.

Technical Parameters :

Measured medium:	gas, liquid and steam (non-corrosive fluid to 316L stainless steel)
Pressure type:	sealed reference pressure, ventilator pressure
Pressure Range:	0～160bar, 250bar, 400bar , 600bar, 700bar , 1000bar
Power supply:	9-32VDC
Built-in amplifier output:	4 ～ 20mA, 0 ～ 10VDC, 0 ～ 5VDC, 1 ～ 5VDC, 0.5 ～ 4.5 VDC(optional)
Non-linearity:	≤0.2% FS
Repeatability:	0.2% FS
Combined Accuracy:	0.5%FS
Long-term stability:	0.25% FS / year
Working medium temperature:	-40 ～ + 85 ℃
Working environment temperature:	-40 ～ + 75 ℃
Zero temperature drift:	≤0.03% FS / ℃
Safe overload pressure:	150% FS (1.5 times full scale)
Breaking pressure:	500% FS (5 times full scale)
Connection method:	G1 / 4 external thread, M14 × 1.5 external thread or OEM designation
Wetted material:	Diaphragm: 17-4PH stainless steel, others: 304 stainless steel
Enclosure protection class:	IP67
Electrical output lead:	M12 × 1 connector, DIN43650 connector (Hirschmann connector)

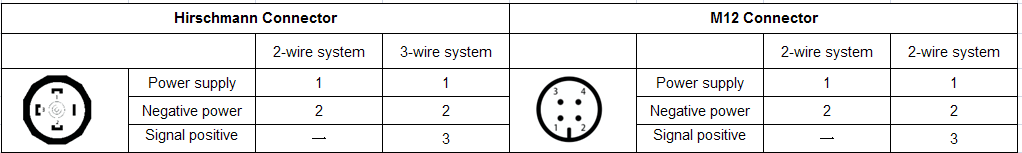

Definition of wiring:

OEM 4-20mA Smart Pressure Sensor Pressure Transducer Pressure Transmitter

Dimensions in mm :

OEM 4-20mA Smart Pressure Sensor Pressure Transducer Pressure Transmitter
