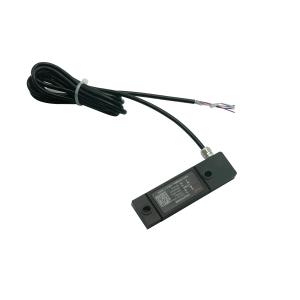

Robust strain sensor for harsh outdoor environment

Name: Robust strain sensor for harsh outdoor environment
Brand: CSPPM
Price: 1 USD

China Robust strain sensor for harsh outdoor environment wholesale

Brand Name : CSPPM

Model Number : PPM-YB-3000

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Measuring type : Micro strain, linear deformation

Measuring range : ±3000με

Power supply : 5VDC

Output signal : mv

Nonlinearity : ≦0.015%FS

Repeatability : ≦0.02%FS

Accuracy : Accuracy error：≤2%FS

Long-term stability : ≦0.5%FS/Year

Operation temp : -25℃—85℃

Zero temp. drift : ≦0.3%FS

Contact Now

Strain sensor Easy mounting with two screws

Product Introduction:

Strain sensor for dynamic applications, with process tare Cyclic with analog signal path for fast response time. Ideally suited for force measurements on presses and injection molding machines.

Analogue signal path with fast response time
For dynamic applications with external input for automatic zero-point adjustments, qualified for periodical and recurring zero point adjustment
For indirect force and deformation measurements
With integrated amplifier with ± 10 V or 4-20 mA

Applications :

Indirect force measurement by detecting smallest strains allows efficient control of relevant process parameters (e.g., presses, assembly machines, welding machines, jigs, feed force)
Limit value monitoring to avoid overloads
Monitoring and documentation of process forces for increased process reliability (eg joining forces, assembly machines, pressing force, detection of tool breakage and wear)

Technical Parameters :

Measuring type	Micro strain, linear deformation
Measuring range	±3000με
Power supply	5VDC
Output signal	mv
Nonlinearity	≦0.015%FS
Repeatability	≦0.02%FS
Accuracy	Accuracy error:≤2%FS
Long-term stability	≦0.5%FS/Year
Operation temp	-25℃—85℃
Zero temp. drift	≦0.3%FS
FS temp. drift	≦0.3%FS
Response time	<3ms
Output impedance	1KΩ
Insulation resistance	>1000MΩ/100VDC
Overpressure	120%FS
Damage pressure	>300FS
Materials	7075Aluminium Alloy
Ingress protection	IP65
Electrical connections	Cable connection

Definition of wiring:

Dimensions in mm :

Robust strain sensor for harsh outdoor environment Images
