PPM-S314C 150degree Pressure Transmitter Sensor Oil Well

Name: PPMS314C 150degree Pressure Transmitter Sensor Oil Well
Brand: CSPPM
Price: 1 USD

China PPM-S314C 150degree Pressure Transmitter Sensor Oil Well wholesale

Brand Name : CSPPM

Model Number : PPM-S314C

Certification : CE

Place of Origin : China

MOQ : 1 PCS

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : Standard export packing, including instructions and certificate

Measured medium : gas liquid and steam

Pressure Type : ventilation gauge pressure

Pressure Range : 0 ~ 10MPa, 25MPa, 40MPa, 60MPa, 100MPa, 150MPa, 200MPa (customized for other ranges)

Power supply : 5-10VDC

Output signal : 1.8 ± 0.2 mV / V, 4 ± 0.5mV / V

Mounting thread : M10 × 1 with double O-ring seal

Electrical interface : direct outlet

Repeatability : 0.05% FS

Contact Now

0 ~ 200MPa PPM-S314C Well Testing Pressure Sensor

Product Introduction:

PPM-S314C oil well high temperature pressure sensor sensitive chip is made by ion sputtering thin film technology. The product adopts stainless steel structure and laser welding to seal the pressure. It has the characteristics of small dimensions, high accuracy, stable and reliable performance, high and low temperature resistance, and long pressure fatigue life. Special shapes can be customized.

Applications :

Oil drilling, logging, well testing, downhole instruments, digital pressure gauges, water injection, multi-parameter inclinometers, large military equipment, etc.

Technical Parameters :

Measured medium :	gas liquid and steam
Pressure Type :	ventilation gauge pressure
Pressure Range:	0 ~ 10MPa, 25MPa, 40MPa, 60MPa, 100MPa, 150MPa, 200MPa (customized for other ranges)
Power supply :	5-10VDC
Output signal :	1.8 ± 0.2 mV / V, 4 ± 0.5mV / V
Mounting thread :	M10 × 1 with double O-ring seal
Electrical interface:	direct outlet
Repeatability :	0.05% FS
Accuracy:	0.1% FS, 0.25% FS
Long-term stability :	≤ ± 0.1% FS / year
Working medium temperature :	-40 ~ + 150 ℃
Working environment temperature :	-40 ~ + 150 ℃

Definition of wiring:

Direct outgoing
		Cable color
	Power supply	red
	Negative power	black
	Signal positive	green
	Signal negative	white

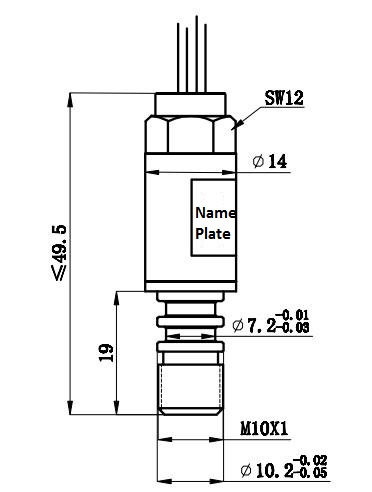

Dimensions in mm :

PPM-S314C 150degree Pressure Transmitter Sensor Oil Well
